Fresnel Lens LED Collection Polished Chrome Clear Fresnel Glass Coastal Pendant Light : 1VTGW

No Image
Available

Image may not reflect selected features

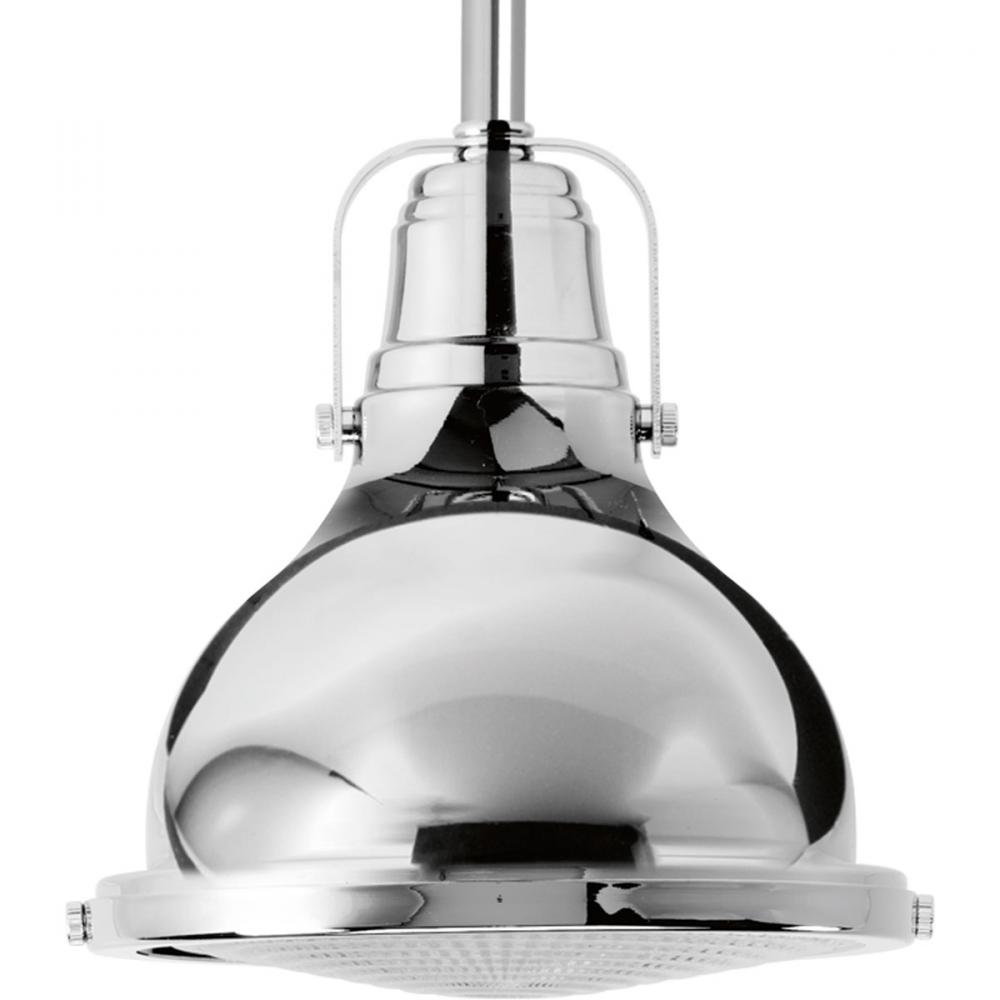

Fresnel Lens LED Collection Polished Chrome Clear Fresnel Glass Coastal Pendant Light (1VTGW)

The Fresnel one-light semi-flush has an antique, nautical-inspired Fresnel glass lens. It features industrial roots in both form and function. 3000k, 90+ CRI 623 lumens (source).

Downloads

Click Here to View Spec Sheet

Click Here to View Warranty

Click Here to View Install Sheet

Product Specification

Item #

1VTGW

Dimensions

Height: 6.25"

Width: 6.13"

Length: 6.13"

Additional product details

Internal #

1VTGW

Category

Pendants

Finish

Polished Chrome

Style

Coastal;Farmhouse;Urban Industrial

Option

Damp Rated , Energy Efficient , Energy Star , Title 20

Family

Fresnel Lens LED

Glass

Clear Fresnel

Voltage

120

Number of Bulbs

1 Bulbs

Backplate Height

1.13

Backplate Width

4.88

Bulb Hours

60000

Bulb Type

Module

Chain Included

8 in

Down Rod Included

One 6", Four 12"

Introduction Date

01/16/2017

Kelvin

3000

Keyword(s)

hanging lamp;dropdown fixture;pendant;led

Length

6.13

Lumens / Light Output

521

Material

Steel

Max Height

72.25

Ship Carton Height

8.12

Ship Carton Length

13.37

Ship Carton Width

9.00

Ship Weight

3.81

Special Features

Polished Chrome finish.;Features a nautical-inspired Fresnel glass lens.;Antique inspired with industrial roots;Includes one 6", four 12" stems and 6 links of chain.;Dimmable to 10% with many ELV dimmers;623 lumens 69.2 lumens/watt per module (sour

Vendor Ship Method

Non UPS Shippable False

Warranty

5-year Limited

Weight

3.30

Wire Included

120 in

Americans with Disabilities Act

Backplate Depth

4.88

Bulb Base

Module

Bulb CRI

90+ CRI

Bulb Included

Yes

Can be Mounted Up or Down

Canopy Shape

Round

Certified Listed Location

Damp Location Listed

Chain Gauge

9 Gauge

Chain Quantity

1 EA

Construction Material Main Part

Construction

Convertible Fixture Includes Both Mounts

FALSE

Country of Origin

Dark Sky

Design Series

Dimming Compatability

Lutron_Nova T NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600

Dimming Protocol

ELV/Reverse Phase

Dimming Range

10%

Energy Efficient

Yes

Energy Star

Yes

Finish Type

Plated

Frequency Rating

60 Hz

Glass Height

0.5

Glass Length

5.375

Glass Shape

Lens

Glass Width

5.375

Grounded Convenience Outlet included

JA8

Lamp Type Actual

LED

Lamp Type Basic

Solid State

Lamp Wattage

Length Installed

72.25 in Overall Ht. W/Chain And Stem

Lens Shade Material

Glass

Lumens per Watt

66.80

Mount Location

Ceiling Stem Hung with 6 Links of Chain

MTO

Operating Temperature Celcius Max

30 °C

Overall Length with

Overall Ht. W/Chain and Stem

Prop 65

Yes

Prop 65 Description

Reproductive Harm, Cancer

Room Type

Kitchen;Bar

Safety Rating

cCSAus

Starting Temperature Minimum

-30 °C

Sub Brand

Progress LED

Title 20

Yes

Title 24

Weight of Fixture Exceeds NEC Limits

Width Diameter

6.125 in dia.

Finish

Additional options that would change other selections

Family

Additional options that would change other selections

Backplate Depth

Additional options that would change other selections

Backplate Width

Additional options that would change other selections

Included Items

Bulbs: (1) x 9 Watt Module

Call for Price

Qty:

BASE PRICE:

246

/ / 1

($246.51 / 1)

Add To Cart

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer availability unknown.
